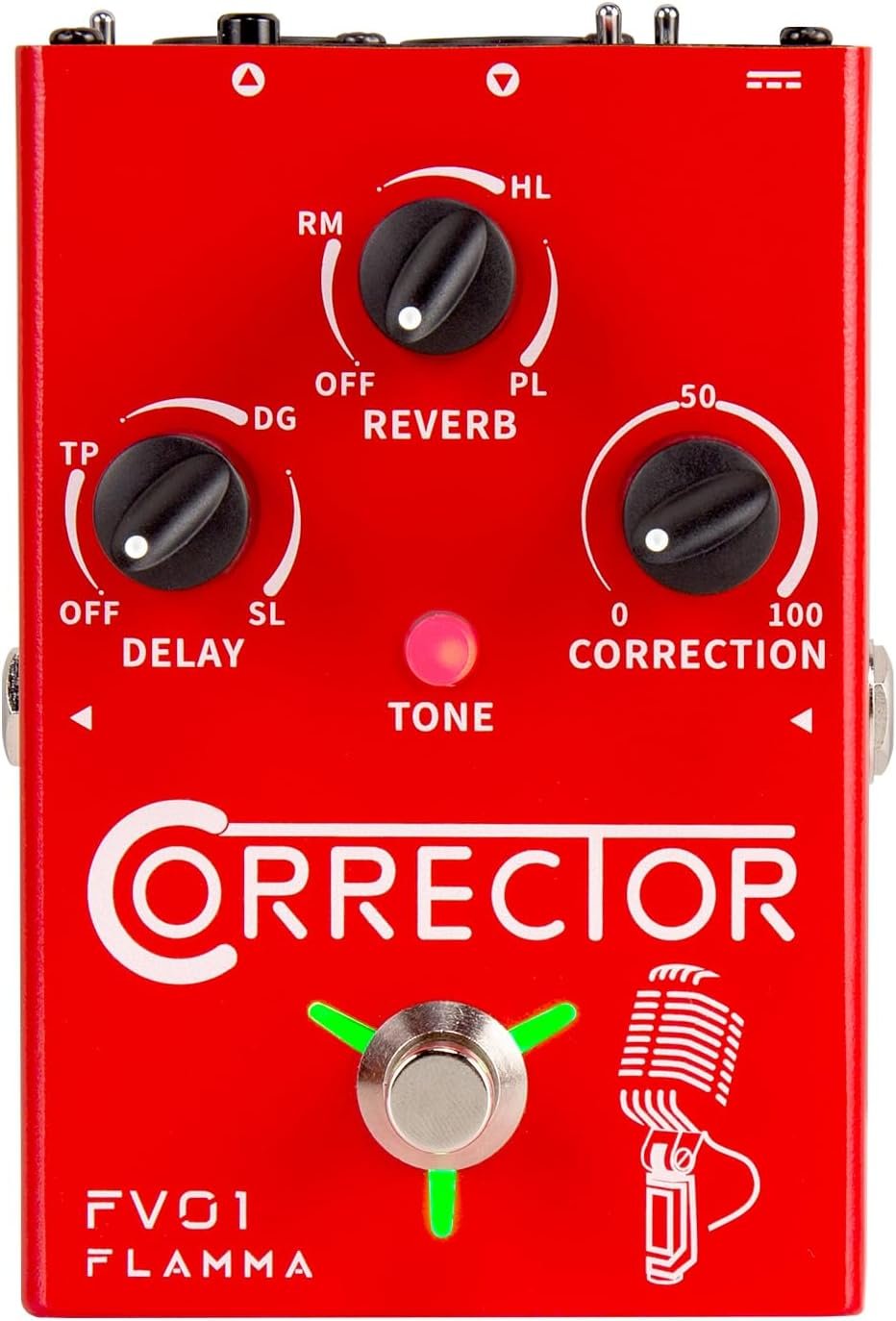

FLAMMA FV01 Vocal Effects Processor Pitch Correction Voice Pedal Vocal Stompbox

Product description

Main Features

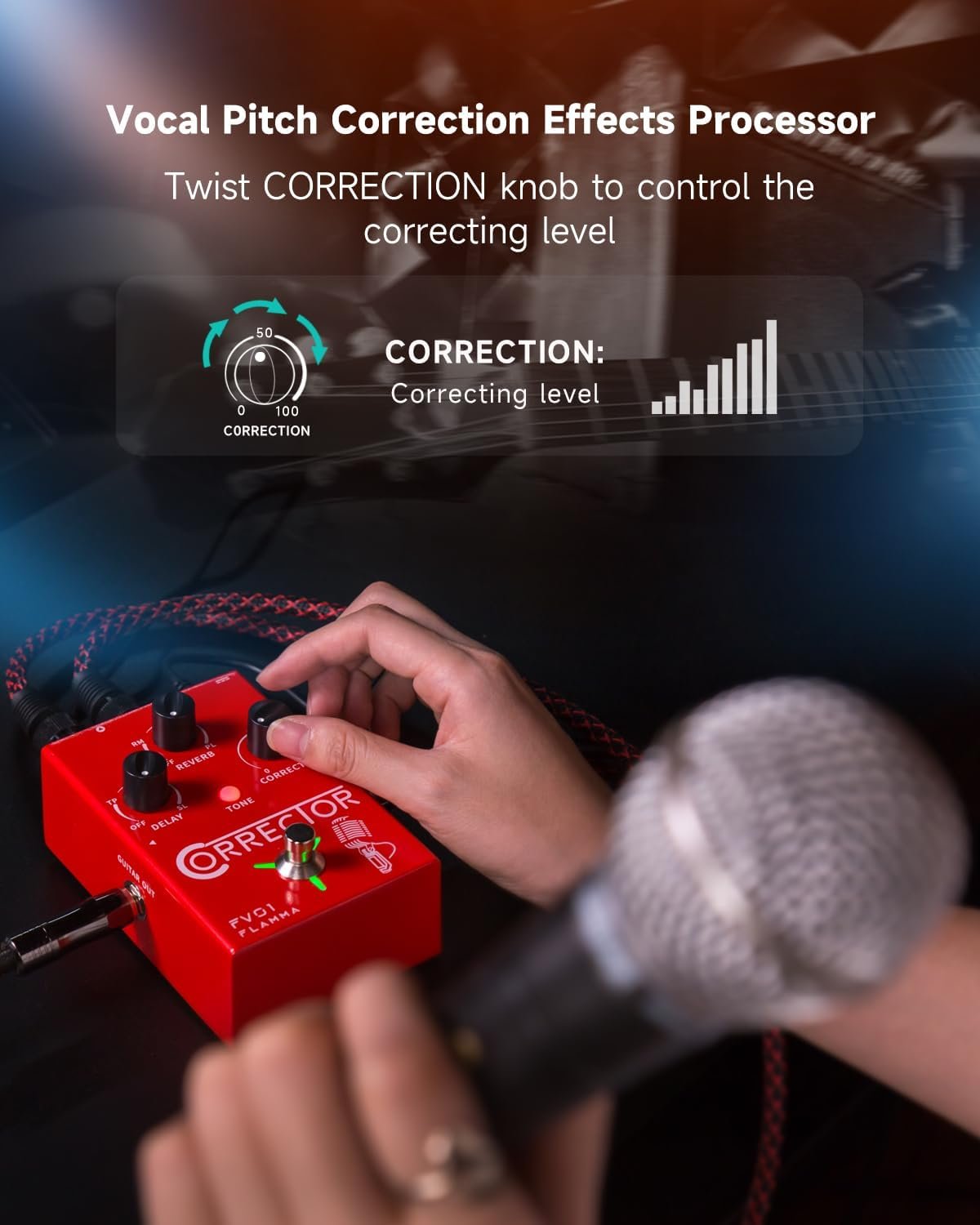

As the name suggests, the FV01 vocal effects Corrector is primarily a pitch-correction pedal that offers everything from pitch correction to full-blown effects overload when your input is a microphone. Starting with the vocal effects, the FV01 features three separate vocal effects as indicated by the TONE LED displayed prominently in the center of the pedal. Singers can switch between WARM, BRIGHT, and NORMAL modes, with each mode indicating the type of EQ manipulation provided by the pedal.

Precise pitch correction effect for clean, even tone. High-quality delay and reverb specifically designed for vocal performance.Built-in TAP TEMPO feature to set the timing of delay effects. Three unique vocal tone settings to choose from.Guitar in/out with individual guitar reverb effect. Can be used as a microphone amplifier or a traditional stompbox.Optional 48V phantom power for condenser microphones.Two different output modes for mixed signal or individual signal from guitar and microphone.

About FV01 Vocal Effect Processor

Multiple Usage Scenario

Whether you’re streaming, recording, gaming, or podcasting online, the FV01 vocal pedal with effects brings multiple choice of your vocals, parameter knobs allow you to fine-tune your sound. Which will provide infinity creation to your sound and performance.

Creative Vocal Effects

Reverb delay effects and different microphone tone modes to choose from. 3 Reverb Effects: room reverb with low decay, huge hall reverb, classic plate reverb; 3 Delay Effects: warm tape delay, digital modern delay with distinct replay, classic slap delay. 3 Vocal Tone Mode: normal, warm, and bright.

Micphone Amplifier

Turn the line in function on, the FV01 can be used as a microphone amplifier for the microphone in MIC IN. Alternatively, it can also be used as a traditional stompbox. And the pedal supports 2 different output modes: Individual mode and Mixed mode.

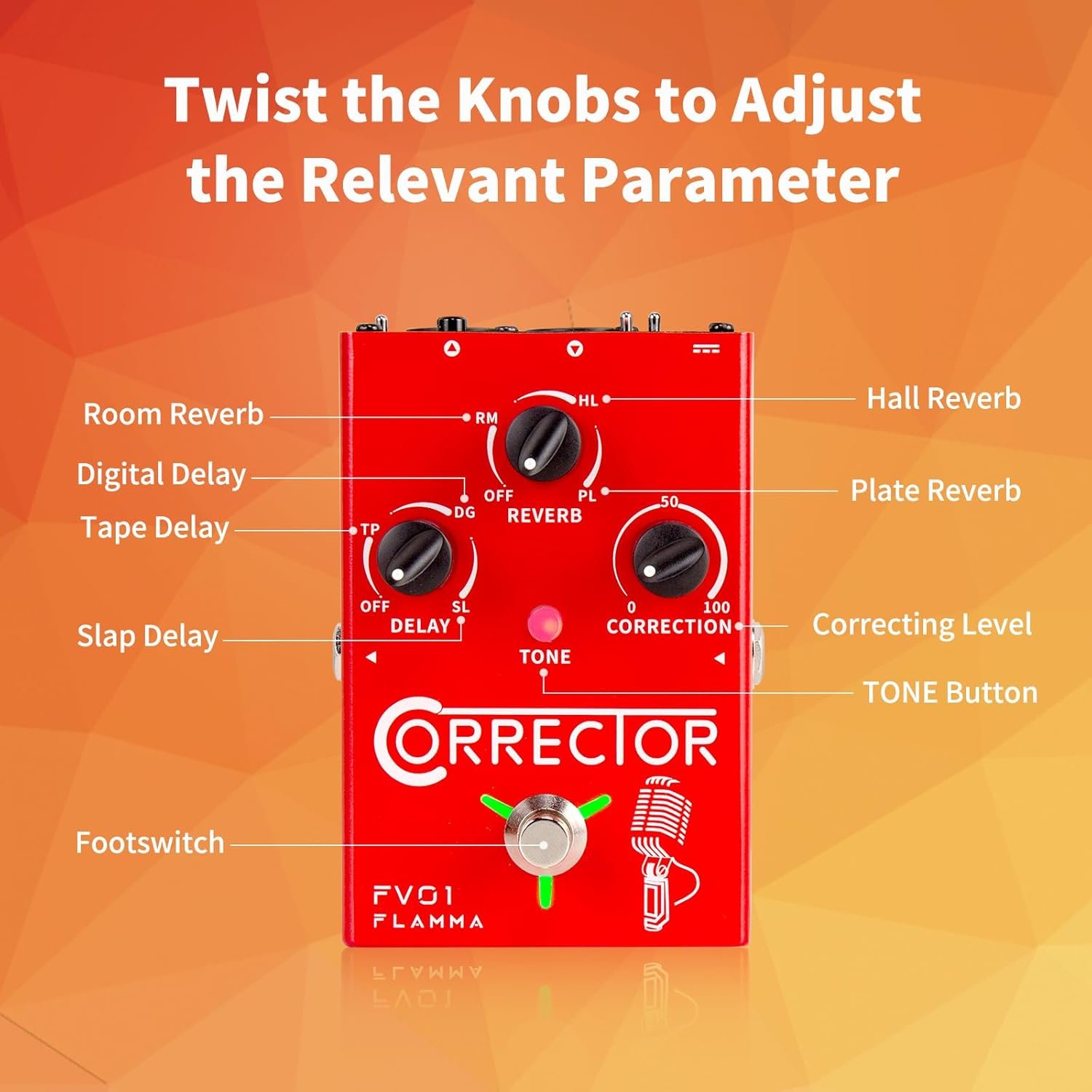

Reverb

This vocal pedal has 3 different classic reverb effects. The volume level of each effect can be adjusted by rotating the REVERB knob. The Hidden Mode can be accessed by press and hold the footswitch. Reverb of GUITAR can be adjusted in the hidden menu.

Delay

FV01 has 3 different delay effects. Rotate the DELAY knob to adjuste the volume level. The Hidden Mode can be accessed by press and hold the footswitch. Use tap tempo to control delay time. Rotate CORRECTION knob to adjust the feedback of the delay.

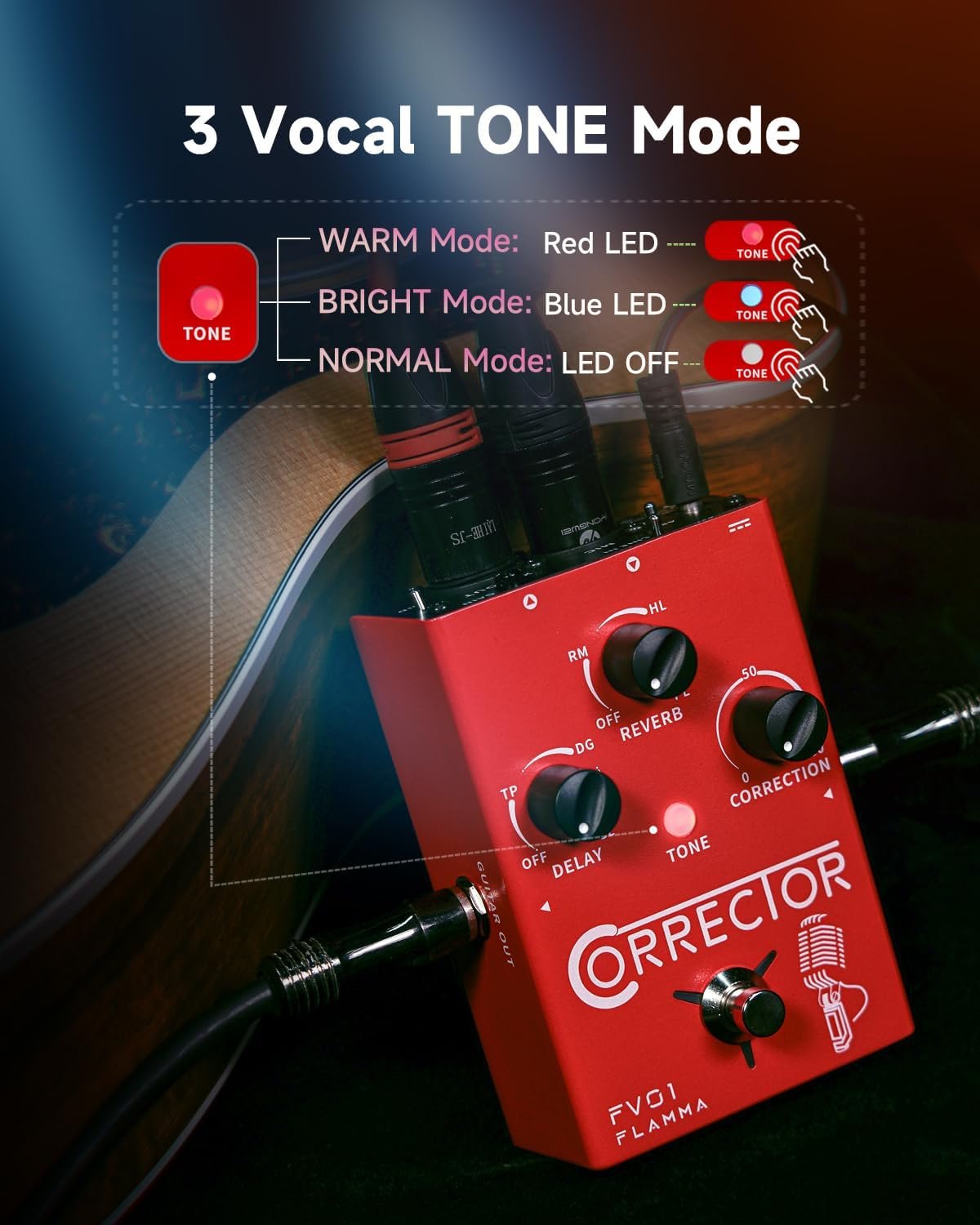

Vocal Tone Mode

Press TONE button to switch between 3 different vocal modes. The color of the LED button indicated the currently selected mode. LED off indicates normal mode, Red LED for WARM mode, and Blue LED for BRIGHT mode.

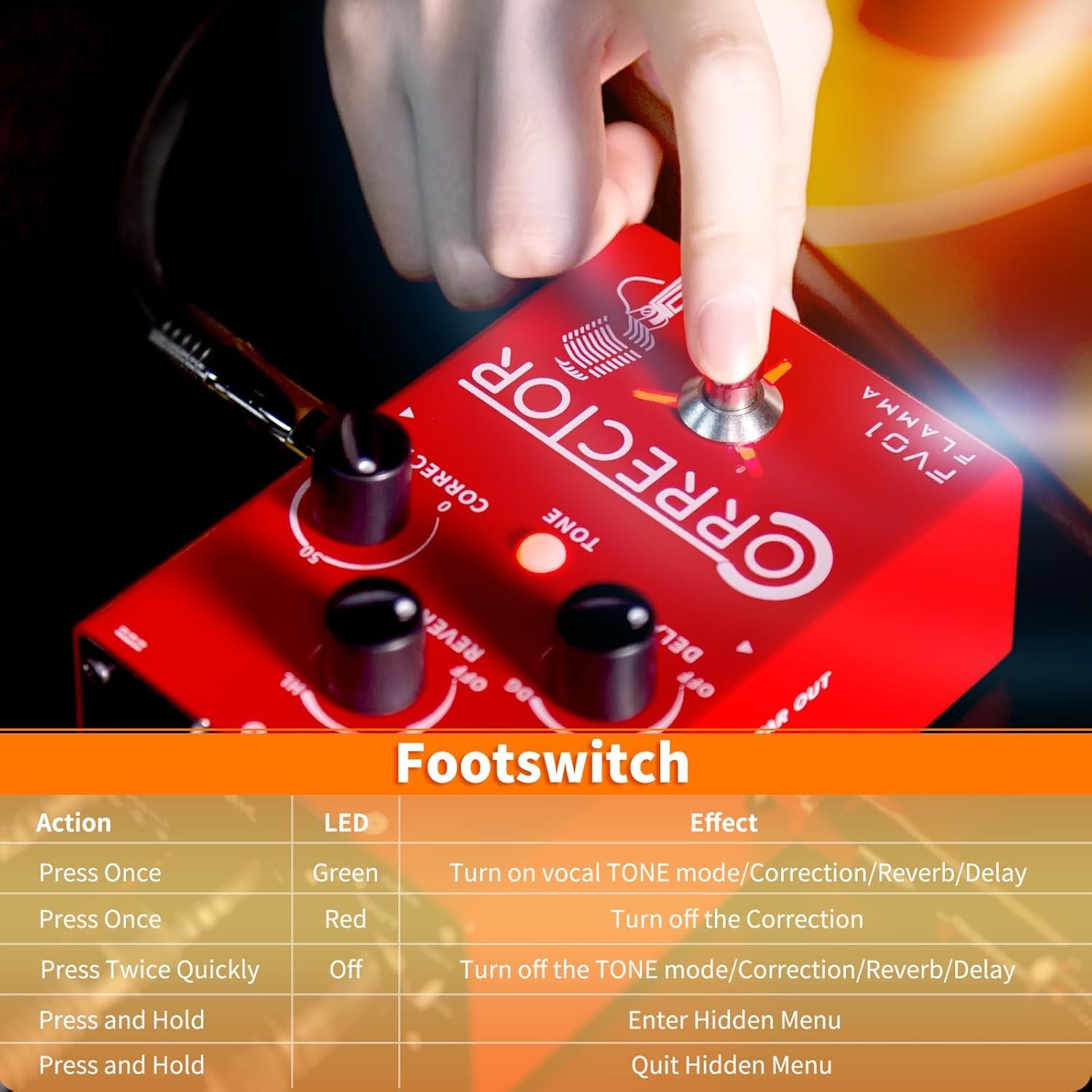

Footswitch

Press to turn on Vocal TONE Mode Correction, Reverb, Delay effect. The footswitch LED will stay green. Press again to turen off the Correction. Press the footswitch twice quicky when effects are on to turn off each effect.

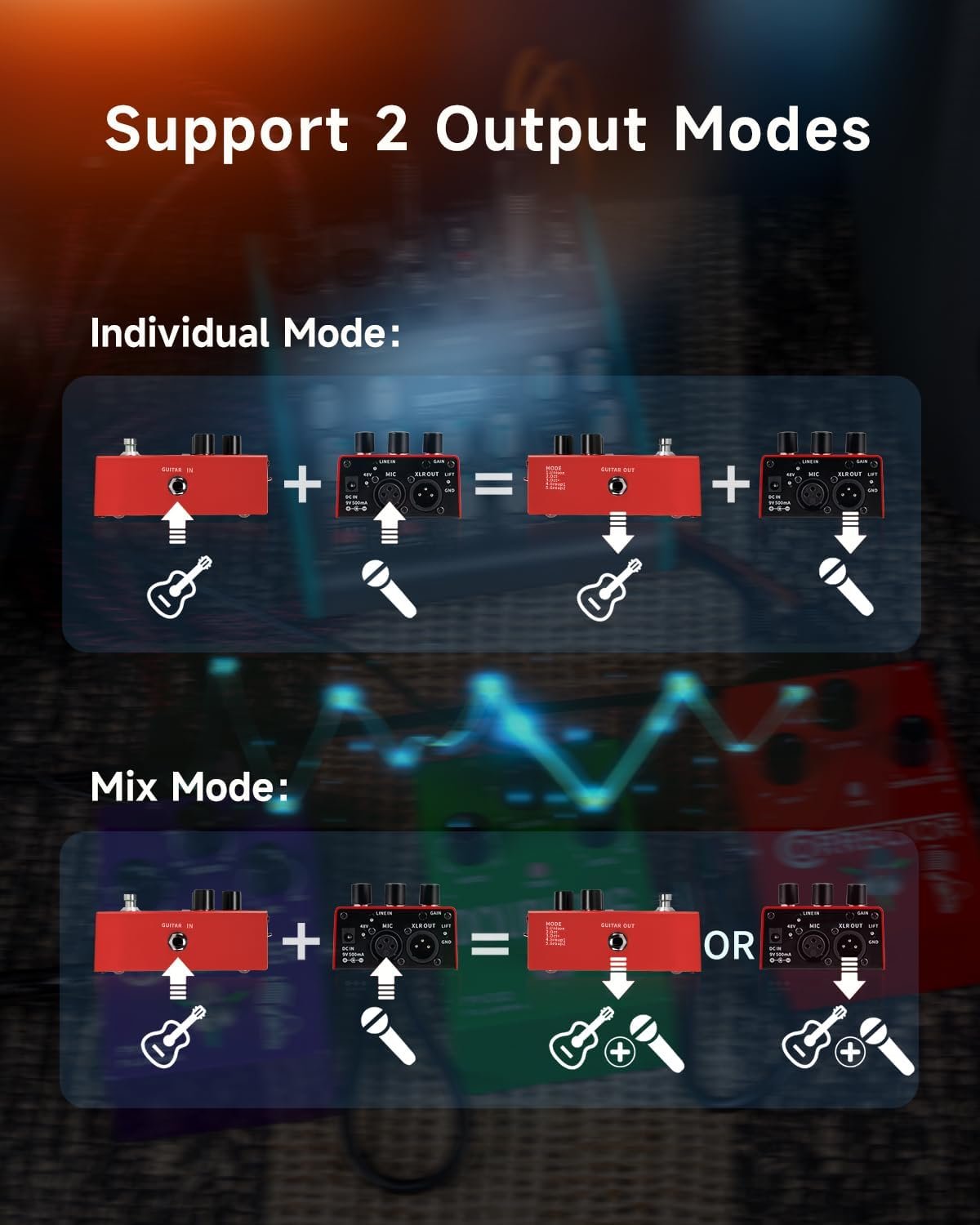

Output Modes

Individual mode

the guitar signal will only go from GUITAR OUT and the microphone signal will only go from XLR OUT.

Mixed mode:

The guitar and microphone signal will be mixed and the mixed signal will go out from both the GUITAR OUT and XLR OUT.

Switch Between Modes

Unplug the power supply. Press and hold teh footswitch while powering on the pedal. The TONE LED and footswitch LED will blink in red to indicate that the mode has changed.

Specification

GUITAR IN 1/4″ mono audio jack (impedance value: 1M ohms) GUITAR OUT 1/4″ mono audio jack (impedance value: 100 ohms) Mic XLR balanced input jack (impedance value: 2.14k ohms) XLR OUTPUT XLR balanced output jack (impedance value: 300 ohms) Power Supply AC adapter 9V DC (Power Supply Included) Current Draw 500 mA Dimension 86.6*125*60 Weight 0.371kg Frequency 20 Hz-20K Hz Accessories Saftey Instruction, Sticker, Quick Guide

The FV01 vocal effects Corrector is primarily a pitch-correction pedal that offers everything from pitch correction to full-blown effects overload when your input is a microphone.
The FV01 features three separate vocal effects as indicated by the TONE LED displayed prominently in the center of the pedal.
Singers can switch between WARM, BRIGHT, and NORMAL modes, with each mode indicating the type of EQ manipulation provided by the pedal.

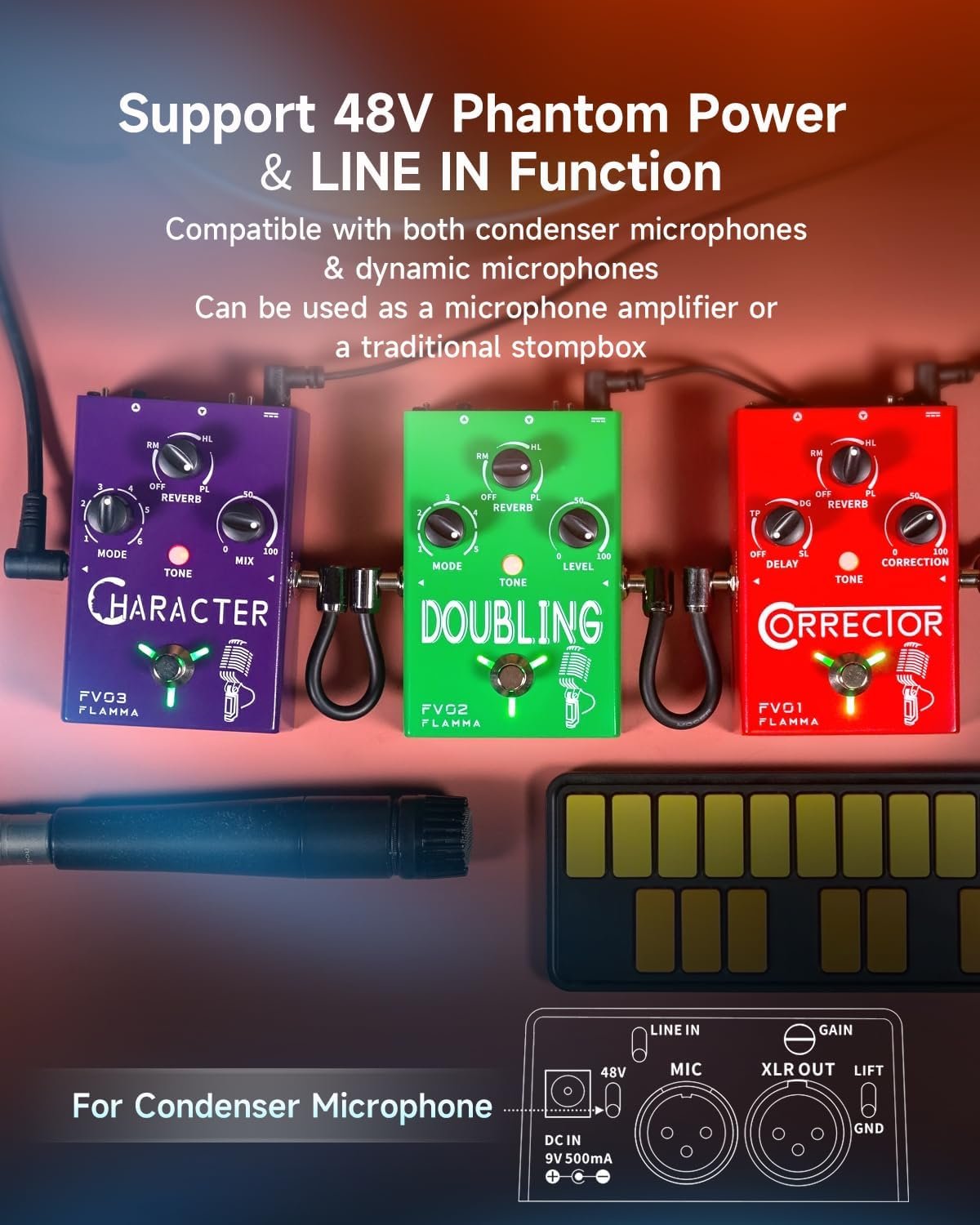

It can be used as a microphone amplifier or a traditional stompbox. Optional 48V phantom power for condenser microphones.
Two different output modes for a mixed-signal or individual signals from guitar and microphone.
