SMSL PL200T MQA-CD Player Clock Input HiFi Lossless Lid-Open Playback Mod

Specifications:
Input: USB Audio / CD Player
Output: Optical / Coaxial / AES / EBU / I²S
USB compatibility: USB 2.0 Asynchronization
USB compatibility: Windows 7/ 8 / 8.1 / 10 / 11 (Need Driver) Mac OSX 10.6 above, Android system, i0S, Linux (Driveless)
Output maximum sampling rate:
I²S output: PCM 44.1~768kHz
DSD 2.8224~22.5792MHz
Optical / Coaxial / AES / EBU: PCM 24bit / 192kHz
MQA 8-fold expansion up to 384kHz (Automatically converts to 192kHz due to SPDlF limitation)
Clock Input:
Frequency: 44.1kHz or 10MHz
Impedance: 50 ohms or 75 ohms
Waveform: square wave or sine wave
Level: square wave TTL level
sine wave>1Vrms
Power consumption: 15W

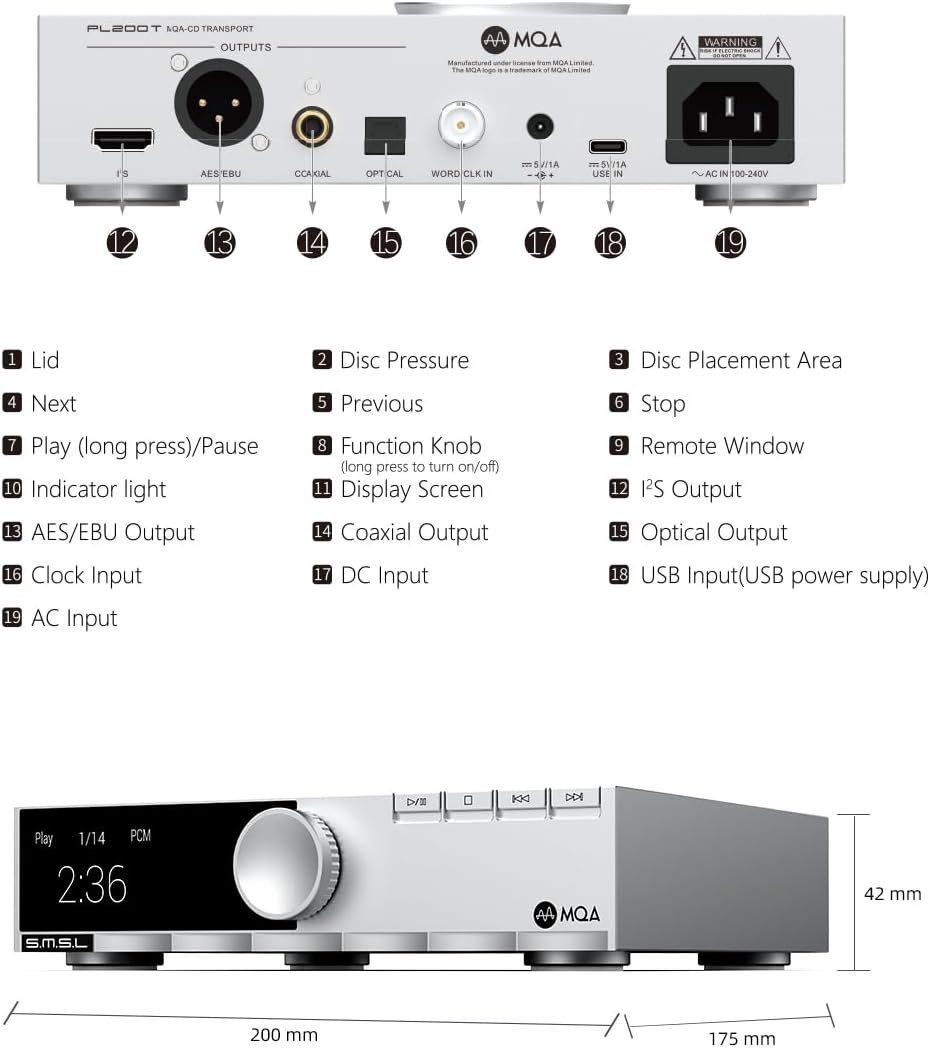

Size: 200 x 42 x 175mm (W x H x D)
Weight: 1.62kg / 3.57lbs
MQA Full Expansion, Clock input, Piano key design, All-aluminum monolithic CNC structure, Supports USB input support up to 32bit/768kHz, DSD512! Achieve reference-level digital interface functions with the support of clock input.

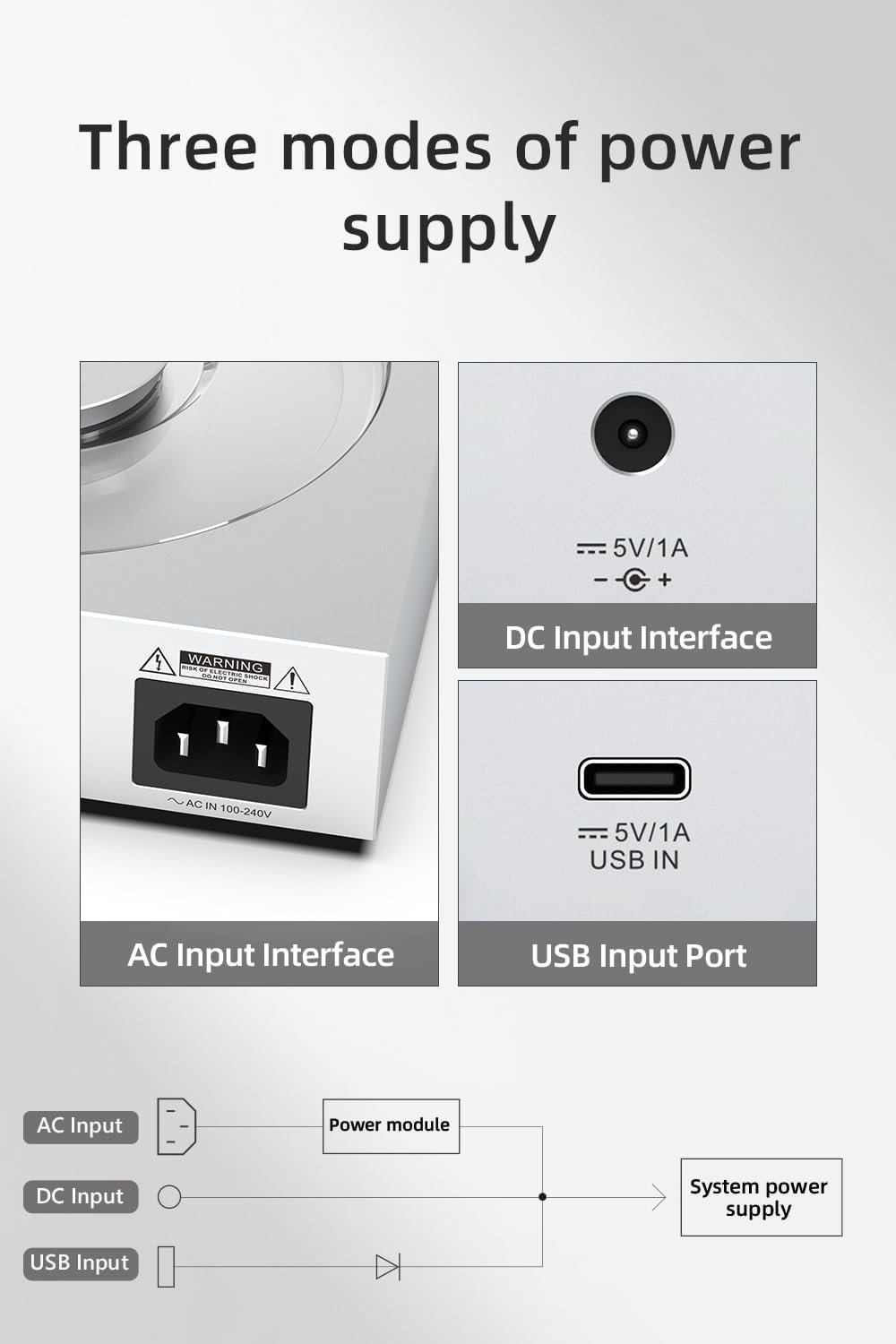

Three modes of power supply. Self-developed precision Access servo system, native support for MQA-CD. The servo system developed by SMSL over two years features fast response and precise reading capabilities. Combined with their self-developed vibration damper, it offers excellent mechanical anti-vibration performance! Support MQA full decoding.
Clock input and Output. Supports 44.1kHz word clock and 10MHz standard or atomic clock! Input impedancematching of 50 or 75Ω is possible!

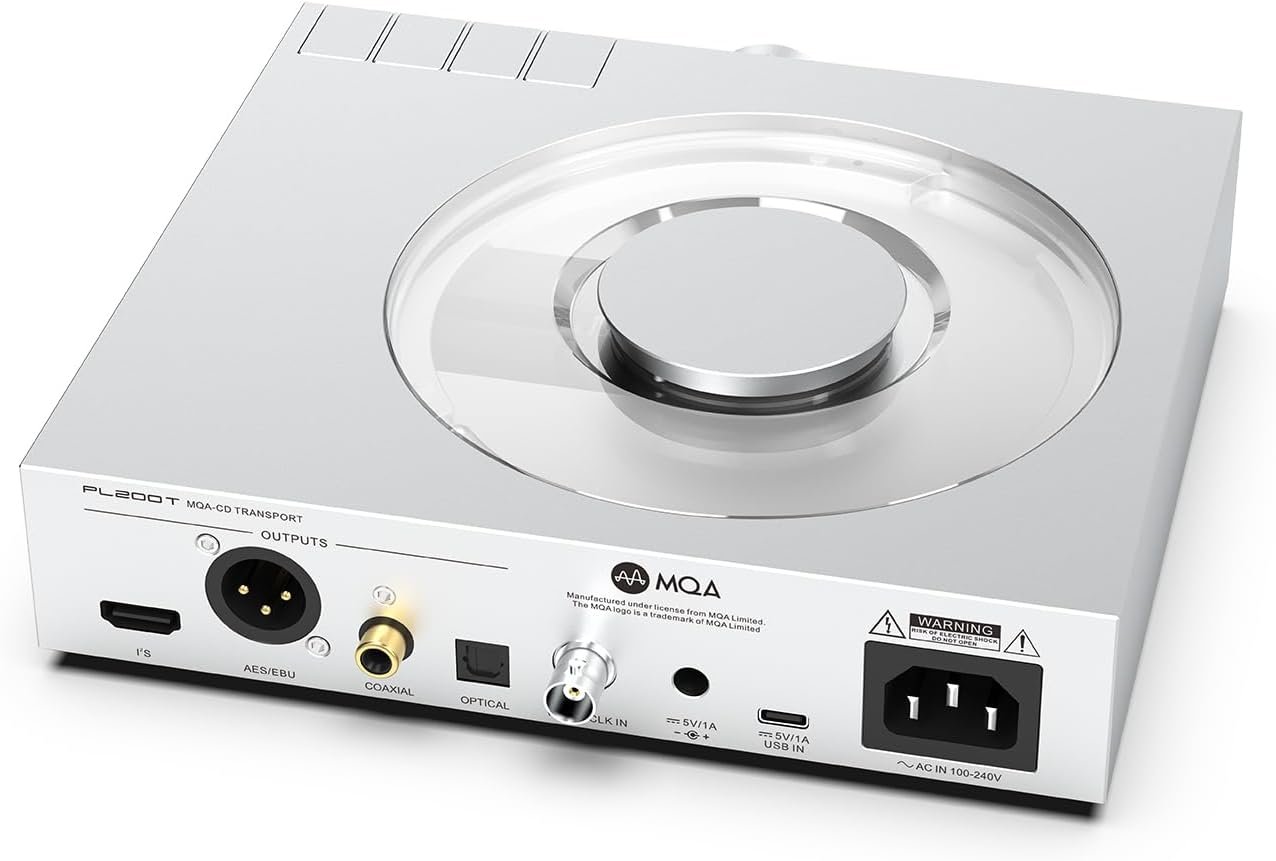

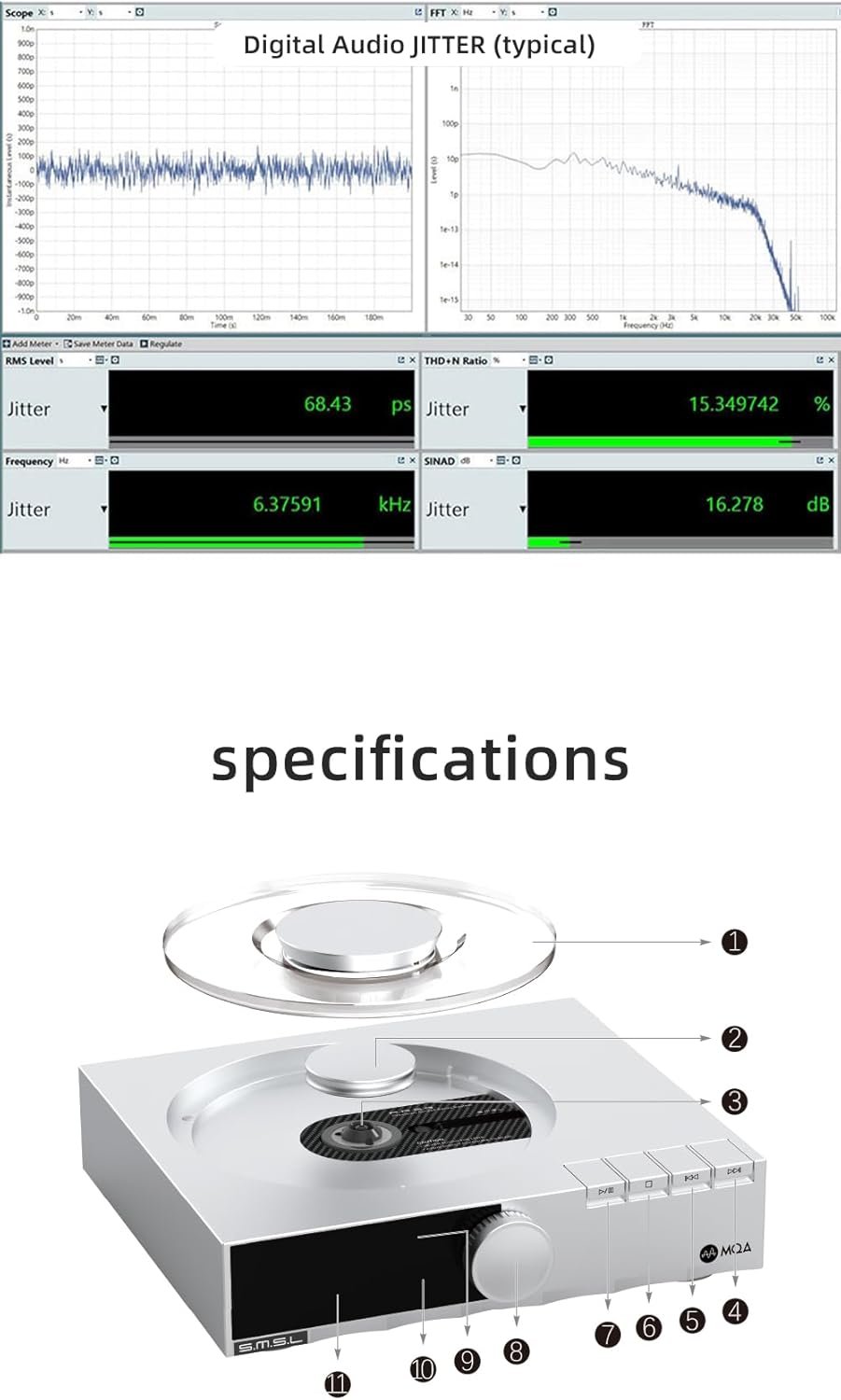

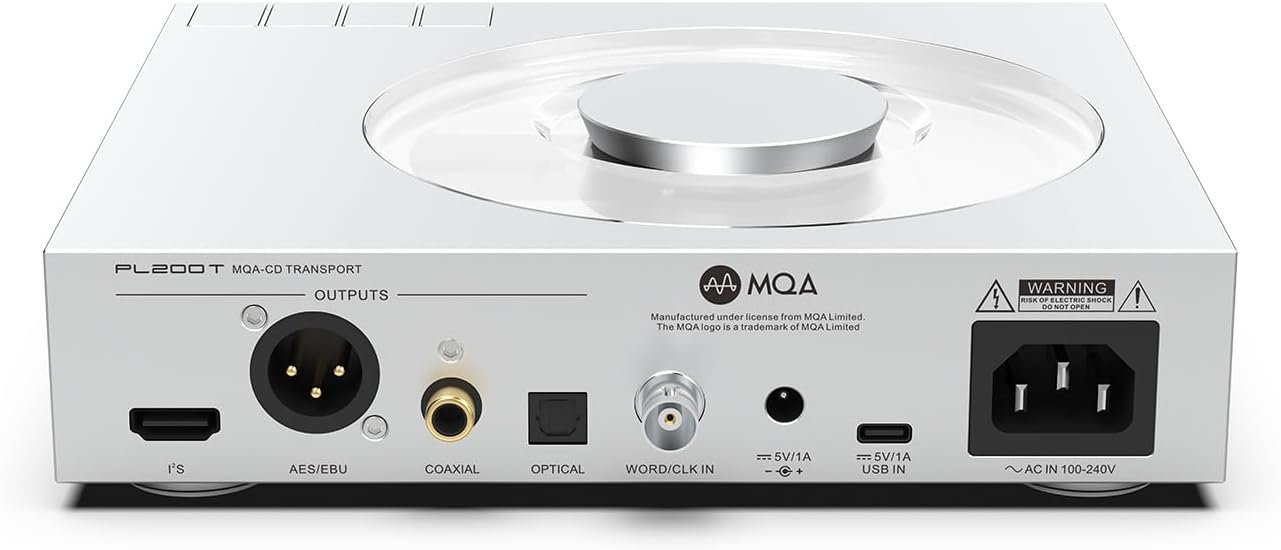

Multi-interface output. With optical, coaxial, I²S and AES/EBU outputs. Multiple low phase noise crystals and clock circuits.

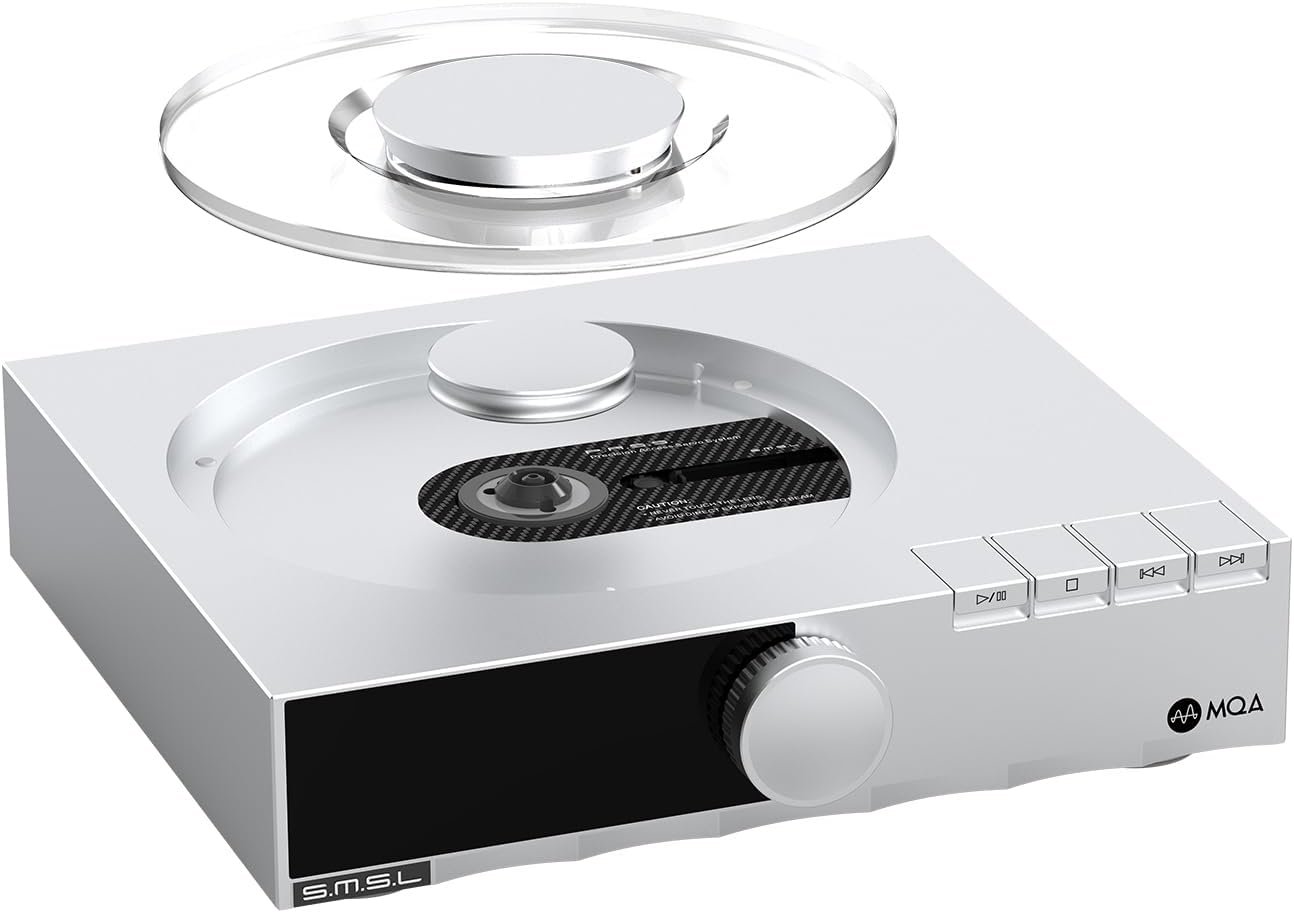

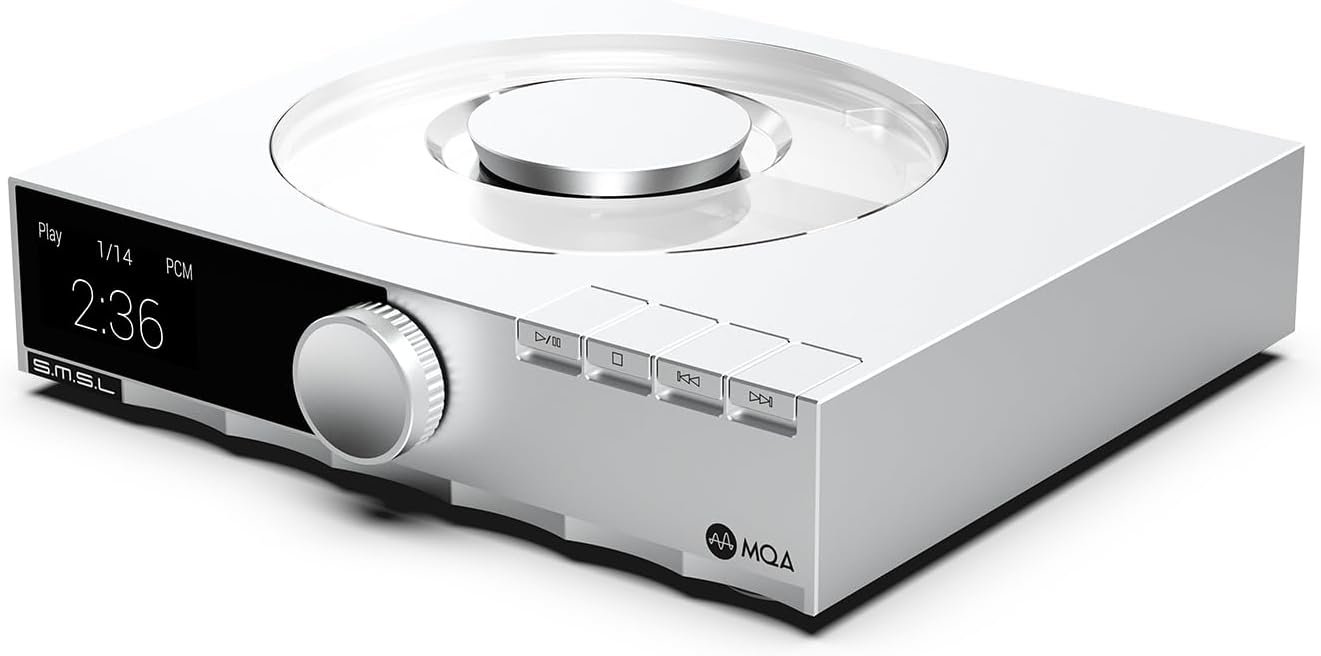

Tempered glass fully laminated lPS display and newly developed UI. Transparent Acrylic CD Lid. Provides dust protection while allowing you to see the CD disk in action and is not prone to breakage
